MECHANICAL BRIDGING OF TERMINALS VIA A ‘BRIDGE’ TYPE CONNECTION POINT

SOME TERMINAL SYMBOLS HAVE A ‘BRIDGE’ TYPE CONNECTION POINT
THIS CONNECTION POINT IS USED TO CREATE A MECHANICAL JUMPER (STRIP JUMPER) WHEN
TWO CONNECTION POINTS OF THE SAME TYPE HAVE BEEN CONNECTED BY AN EQUIPOTENTIAL BONDING CONDUCTOR.

+ –

SEE Electrical Expert
Version : V5R2/SP4
Module : TERMINALS
OS : ALL WINDOWS

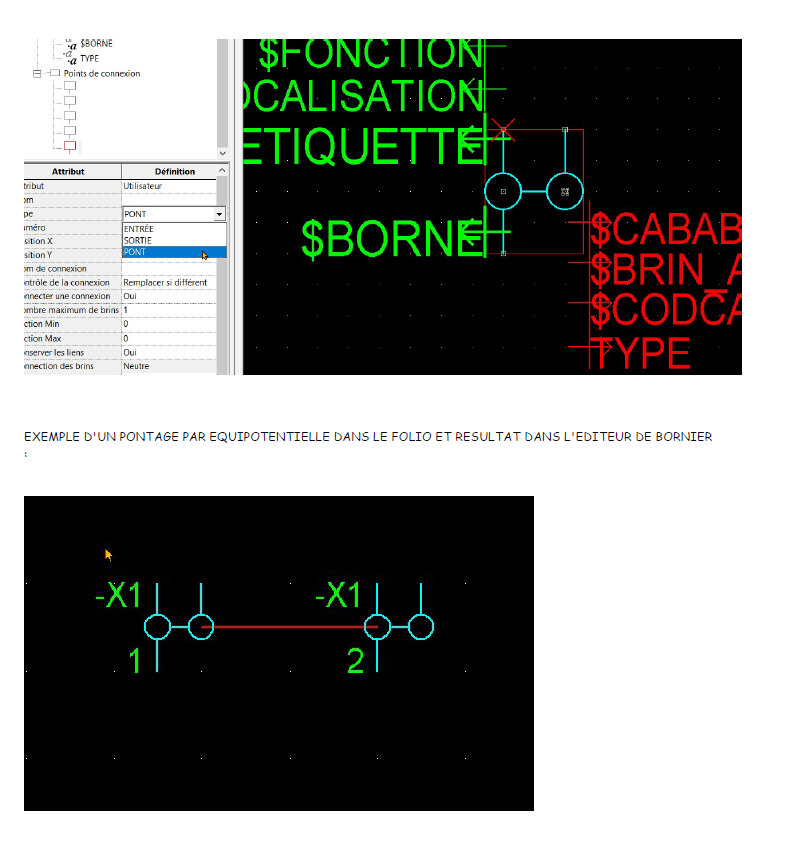

SEE ON THE ATTACHED PHOTO, AN EXAMPLE OF THE SYMBOL WHICH CONTAINS A CONNECTION POINT OF THIS TYPE
